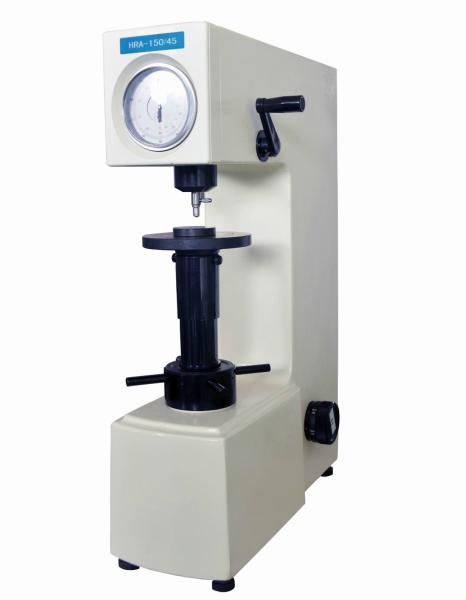

Rockwell and Superficial Rockwell Hardness Tester, Pointer Type Table Hadness Testers HRA-150/45

Name: Rockwell and Superficial Rockwell Hardness Tester Pointer Type Table Hadness Testers HRA15045
Brand: RAYTECH
Price: 1 USD

China Rockwell and Superficial Rockwell Hardness Tester, Pointer Type Table Hadness Testers HRA-150/45 factory

Brand Name : RAYTECH

Model Number : HRA-150/45

Certification : ISO CE

Place of Origin : CHINA

MOQ : 1unit

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500units per month

Delivery Time : 5~8 working days

Packaging Details : Standard Export Carton

Product Name : Rockwell and Superficial Rockwell Hardness Tester, Pointer Type Table Hadness Testers HRA-150/45

Indenter : Diamond Rockwell Indenter, ф1.588mmBall Indenter

Loading Method : Manual

Hardness Reading : Dial

Resolution : 0.5HR

Weight : Net Weight: 80kg，Gross Weight: 100kg

Contact Now

Rockwell and Superficial Rockwell Hardness Tester, Pointer

Type Table Hadness Testers HRA-150/45

Main Function:

HRA-150/45 Double Rockwell hardness tester is a popularly-used hardness testing instrument to

measure the Rockwell and superficial Rockwell hardness of the materials. No need for power

supply, the speed of the test force loading is regulated by the buffer and the test force is regulated

by the load-change hand wheel. It has easy operation and stable performance, therefore it is

widely used.

Application range:

Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable

cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc. Also suitable for

surface quenched steel, surface heat treating and chemical treating materials, sheet, zinc layers,

chrome layers, tin layers etc.

Technical Specification:

Model	HRA-150/45
Initial Test Force	3kgf (29.42N), 10kgf (98.07N)
Total Test Force	15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N), 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N)
Indenter	Diamond Rockwell Indenter, ф1.588mmBall Indenter
Loading Method	Manual
Hardness Reading	Dial
Resolution	0.5HR
Max. Height of Specimen	175mm
Throat	165mm
Execute Standard	ISO 6508,ASTM E-18,JIS Z2245,GB/T 230.2
Dimension	520×255×700mm,Packing Dimension: 650×370×950mm
Weight	Net Weight: 80kg,Gross Weight: 100kg

Packing List:

Name	Qty	Name	Qty
Instrument Main Body	1 set	Diamond Rockwell Indenter	1 pc
ф1.588mmBall Indenter	1 pc	Middle Plane Test Table	1 pc
Large Plane Test Table	1 pc	V-shaped Test Table	1 pc
Hardness Block 60~70 HRC	1 pc	Hardness Block 20~30 HRC	1 pc
Hardness Block 80~100 HRB	1 pc	Hardness Block 70~85 HR30T	1 pc
Hardness Block 65~80 HR30N	1 pc	Weight 1, 2, 3, 4, 5	5 pcs
Level	1 pc	Horizontal Regulating Screw	4 pcs
Screw Driver	1 pc	Spanner	1 pc
Anti-dust Cover	1 pc	Usage Instruction Manual	1 copy
