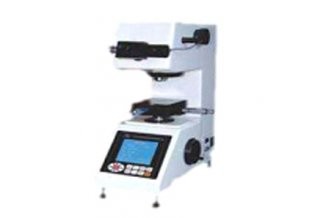

Desktop Micro Vickers Hardness Tester, Test Load
10~2000kgf, Hardness Testing Equipment MHV-2000
Desktop Micro Vickers Hardness Tester, Test Load 10~2000kgf, Hardness Testing Equipment MHV-2000
Desktop Micro Vickers Hardness Tester, Test Load 10~2000kgf, Hardness Testing Equipment MHV-2000
Desktop Micro Vickers Hardness Tester, Test Load 10~2000kgf, Hardness Testing Equipment MHV-2000
Main Features
MHV-2000 Micro Vickers Hardness Tester made with a unique and precise design in the field of
mechanics , optics and light source is able to produce a clearer indentation and hence a more
precise measurement. By means of a 20×lens and a 40×lens the tester has a wider
measurement field and a broader usage range. Equipped with a digital microscope, it shows the
measuring methods, the test force, the indentation length, the hardness value, the dwell time of
the test force as well as the number of the measurements——all shown on its LCD screen
.Besides, it has such functions as registering the date, and measuring results , treating the data ,
outputting the information with the printer, and carrying out the operations of directly showing the
measure number , exchanging the scales among the 17 scales , putting the data into the bank
and linking to RS232 interface and to the digital camera and CCD pickup camera with a
threaded interface . The instrument is, therefore, quite advanced and representative of the
products of the same kind in the country.
Usage Range
Ferrous metals, non-ferrous metals, IC thin sections, coatings, ply-metals;
Glass, ceramics, agate, precious stones;
Hardness testing such as that on the depth and the trapezium of the carbonized layers and
quench hardened layers.
Technical Features
Test Forces:(0.098, 0.246, 0.49, 0.98, 1.96, 2.94, 4.90, 9.80 upto 19.60) N (10, 25, 50, 100,
200, 300, 500, 1000 upto 2000) gf
Carriage Control: automatic ( loading / holding-up of the load / unloading )
Amplification of the Microscope: 200 ×,400 ×
Dwell Time of the Test Force: (5-60)s
Min. Graduation Value of the Testing Drum Wheel: 0.0625um
Testing Field: 1HV—2967HV
Dimension of the XY Table: 100 × 100 mm
Movement Field of the XY Table: 25 × 25mm
Max. height of the specimen : 70 mm
Max. width of the specimen : 95mm
Output : installed with a printer and a RS232 serial interface
Light source : cold light source
Power Supply : 110V/220V, 60/50Hz
Dimension: (425 × 245 × 490)mm
Weight: 30Kg
Main accessories
| XY-stage test table | 1 |
| Thin specimen test table | 1 |
| Fork-shaped test table | 1 |
| Fine wire test table | 1 |
| Adjustable screw | 1 |
| 10×Digital Micro Lens | 1 |
| Micro Vickers hardness blocks (high medium) | 2 |
| Gradienter | 1 |
